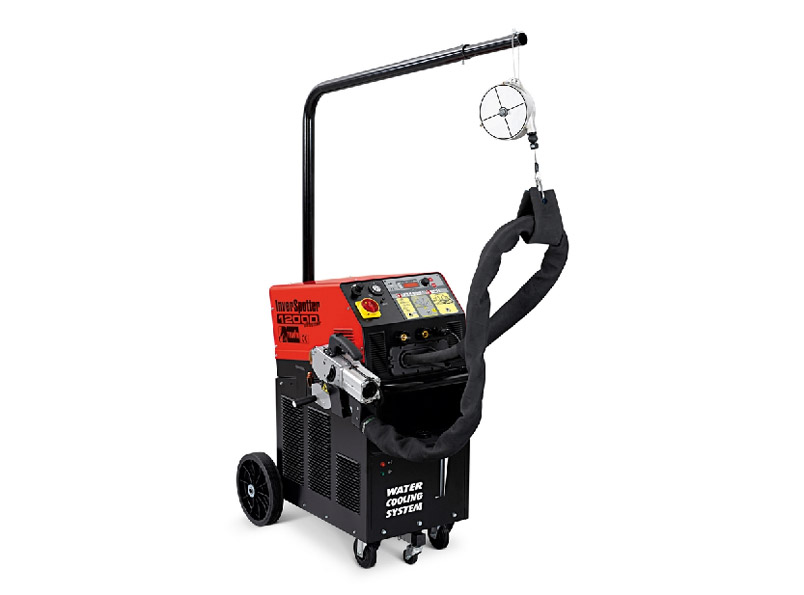

INVERSPOTTER 12000

Microprocessor-controlled, 3-phase,medium frequency direct current (MFDC) inverter technology, electronic resistance welding machine (spot-welder) with water-cooled clamp, suitable for body shop applications and industrial use. Gives excellent results for repair work on materials such as high strength steels, galvanised sheet. The digital, multifunction panel makes it simpleto adjust spot-welding parameters, automatically according to the chosen tool, the type of material and the sheet thickness. Main features: over 200 pre-set programs, automatic recognition of inserted tool mains voltage monitor automatic control of machine, clamp and cables cooling regulation of squeeze, slope up, welding and holding times regulation in pulsed welding (pulse number and interval). Complete with accessories

先进的逆变焊接技术(2000Hz)、输出电流11000A,450daN MAX

192个标准焊接程序,240个用户自定义程序,轻松满足用户需求

焊接功率、电流通过时间、脉冲数量、脉冲间隔时间、压力时间等均可调

最大焊接厚度4mm+4mm,恒定控制点焊过程,对焊接高强度钢、超高强度钢的焊接有极佳效果

配备冷却水循环系统,保证机器适应高负荷生产要求


先进的逆变焊接技术(2000Hz)、输出电流11000A,450daN MAX

192个标准焊接程序,240个用户自定义程序,轻松满足用户需求

焊接功率、电流通过时间、脉冲数量、脉冲间隔时间、压力时间等均可调

最大焊接厚度4mm+4mm,恒定控制点焊过程,对焊接高强度钢、超高强度钢的焊接有极佳效果

配备冷却水循环系统,保证机器适应高负荷生产要求


Microprocessor-controlled, 3-phase,medium frequency direct current (MFDC) inverter technology, electronic resistance welding machine (spot-welder) with water-cooled clamp, suitable for body shop applications and industrial use. Gives excellent results for repair work on materials such as high strength steels, galvanised sheet. The digital, multifunction panel makes it simpleto adjust spot-welding parameters, automatically according to the chosen tool, the type of material and the sheet thickness. Main features: over 200 pre-set programs, automatic recognition of inserted tool mains voltage monitor automatic control of machine, clamp and cables cooling regulation of squeeze, slope up, welding and holding times regulation in pulsed welding (pulse number and interval). Complete with accessories
